How To Correctly Measure Your Pool Cartridge Filter

Written By Timothy Te

18th April 2019

How to Replace Your Cartridge Filter

Before reading on, check out this video to guide you through the steps that we've prepared for you in this blog.

With such a huge range of cartridge filters available online, finding a replacement for your particular application can be a bit daunting. Here we explain how to correctly measure your existing cartridge filter, which helps to narrow down your search.

You need to take three measurements into account

  • Overall Length
  • Diameter
  • Hole Diameter



We'll format it this way:

Overall Length x Diameter x Hole Diameter

The best way to ensure you are purchasing the right filter cartridge for your application is to match up the new cartridges dimensions with your existing cartridge you are looking at replacing.

Yes, this involves taking your old cartridge out of its housing and measuring it with a tape measure.

These dimensions are listed in the description of each and every one of our filters.

Overall Length

Measure through the inside hole from one side to the other, this will ensure any small lips around the hole are included in the measurement, which may change the length.

Diameter

Measure the top of the filter directly from one side to the other.

Hole Diameter

Measure the filter hole from one side to the other.

Then, marry up your appropriate cartridge on the below table, starting with the Overall Length. Note all measurements are in mm (millimetres).

Measurements Table

Product Name Overall Length (mm) Diameter (mm) Hole Diameter (mm)

210

260

75

250

177

76

285

230

102

295

295

100/60

297

115

54

300

230

75

300

230

75

355

175

75

355

175

75

355

175

75

355

295

100/60

375

185

75

375

185

75

375

185

75

375

185

77

383

230

102

440

280

75

440

280

75

440

260

75

488

230

75

495

185

56

495

185

56

500

177

75

500

177

76

500

185

75

500

185

75

500

230

75

500

230

75

500

185

75

500

185

75

500

185

75

500

185

77

500

185

77

529

227

102

529

227

102

556

185

75

556

185

75

574

230

102

589

231

76

592

216

76

592

227

76

600

255

152

700

230

74

700

230

74

710

265

100

716

227

102

717

185

54

719

185

77

736

185

75

736

185

75

742

173

Moulded

744

185

75

750

177

75

750

185

75

750

185

75

750

185

75

750

185

77

750

185

77

791

255

152

791

255

152

841

227

102

841

227

102

898

185

77



Tip: To extend the life of your cartridge, give it a thorough clean every couple of months. Give it a good hose down then soak it overnight in a tub of clean water with some of our specially formulated Zodiac Filter Cleaner for a good 12 hours. After soaking, give it a good rinse and it should be good as new!

Sold out

Spa Cartridge Filters

Even though they can be much smaller, spa cartridges run off the same pool cartridge filter measuring principle as above. The only thing you'll have to look out for to ensure you're purchasing the right one (if it applies to your cartridge) is the thread; they either come in fine or course. Some spa cartridges do not have threads.

Time for a cool change

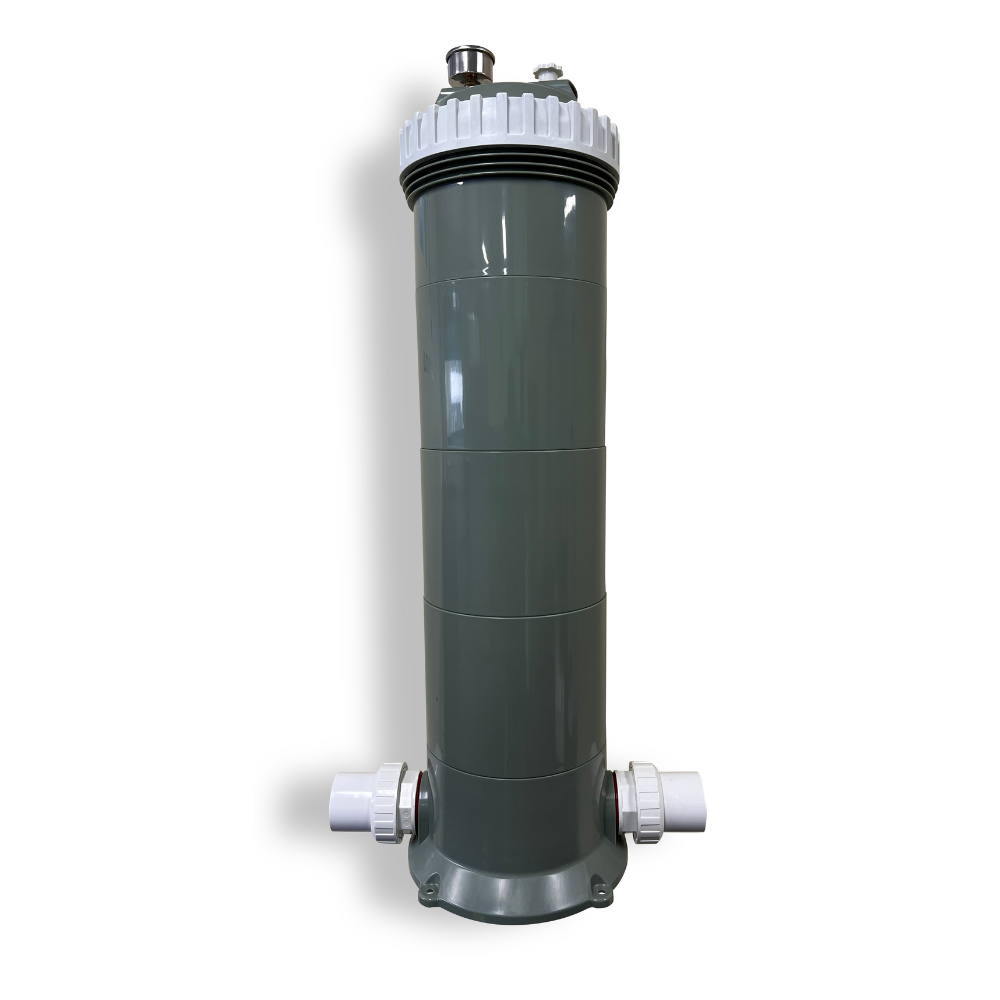

Can't find your cartridge model on our list up top or in our shop? There's a chance that they're no longer in production. Maybe it's time to move on and replace your filter set with something newer an more efficient. Check out our line of filters down below.
