Water TechniX Inverter Heat Pump Paradise 18kW

average rating5.0 out of 5
$4,949.99 Save $550.00 ( 10% off RRP of $5,499.99 ) i
  • Heat Pump Valve Installation Kit 40mm $239.97
  • Ascon Heater Switch Control Box - MHS-I $498.99
i
  • Delivered in days to i
  • Lifetime after-sale support i
  • Lifetime after-sale support i
  • Available for preorder i
  • Order ships within days i
  • Free Shipping Australia Wide i
  • Back in stock soon i
  • In stock i

Water TechniX Inverter Heat Pump Paradise 18kW

$4,949.99
$550.00 (10%) off RRP of $5,499.99 i
  • Product Description

  • Shipping and Returns

  • Reviews

Product Description

It’s finally here! Water TechniX has finally released the Water TechniX Paradise 18kW Inverter Heat Pump. Marrying the latest in technology with modern, minimalistic design, the Water TechniX Paradise Inverter Heat pump has a compact footprint while delivering maximum savings and performance at the same time.

They said it couldn’t be done but by utilising Mitsubishi’s advance Inverter Smart Technology, the Water TechniX Paradise pushes COP ratings to as high as 16 with an average COP of 14, which is higher than many of the “premium” heat pumps out there, pushing an additional 20% savings on top of the already high savings potential!

Higher efficiency means faster heat up times for your pool which means less waiting and more fun in the pool! Once the water has reached the desired temperature, the Water TechniX Paradise Inverter Heat Pump will automatically revert to Silent mode to maintain the perfect temperature with a COP rating as high as 16!

The twin-rotary Mitsubishi DC inverter compressor coupled with the advanced air ventilation system makes this one of the quietest heat pumps on the market, operating at only 40dB(A) while in Silent mode! Putting that into perspective, a normal human conversation is at 60dB(A) and the sound you hear at a quiet library is at 40dB(A)!

The Water TechniX Paradise Inverter Heat Pump also has an easy-to-read LCD screen that makes adjusting any of the settings a breeze! On top of that, it also comes standard with WiFi connectivity so that you can monitor your pool’s condition and adjust your heat pump’s settings from anywhere in the world!

And finally, the casing of the Water TechniX Paradise Inverter Heat Pump is made with premium ABS (Acrylonitrile Butadiene Styrene) so it protects itself from the elements! No more need for additional protection as ABS can withstand the harsh Australian conditions without cracking in the rain and heat!

The Water TechniX 18kW Inverter Heat Pump would commonly be used on pools up to 70,000L, depending on location, if the pool is covered and the desired heating temperature!



Features:

  • High energy efficiency with an average COP of 14!
  • Soft start, stepless DC inverter
  • HEAT and COOL Temperature feature!
  • Smart WiFi controller with app for remote operation
  • Quiet twin rotary Mitsubishi compressor
  • Twisted titanium heat exchanger
  • Anti Rust ABS casing for the toughest of conditions
  • Premium LCD touch screen display
  • User-friendly control panel
  • Smart ECO mode to reduce power costs
  • Sleek modern front airflow design
  • Super quiet with an average of 40dB
  • Heating and cooling modes
  • Internal safety flow switch
  • Designed and built for Australian conditions
  • Environmentally friendly R32 refrigerant gas
  • Compact size for all applications
  • Certified AU electrical system


Warranty:

  • 25 year warranty on the heat exchanger
  • 7 year warranty on the compressor
  • 2 year warranty on parts
  • 1 year warranty on site labour



Benefits:

  • Why buy from us? – Mr Pool Man is one of Australia’s largest Online pool retailers with 160,000+ happy customers!
  • Warranty - All Water TechniX equipment is backed by factory warranty and a 100% satisfaction, money back guarantee. We love them too!
  • Superior Quality - All Water TechniX equipment is manufactured from the same factories as the larger OEM brands at the same high quality you would expect at a fraction of the price!
  • Buy with Satisfaction and experience real service – When you purchase Water TechniX Equipment, you can relax knowing you have a dedicated team of real people with more than 20 years of experience ready to help you with any questions or concerns you may have. We are known for our 5-star customer service and are happy to help you with anything you may need.
  • Suits all pools - The broad range of Water TechniX Equipment allows applications in all pools, above ground, in ground, indoor and outdoor!
  • Energy Efficiency - All Water TechniX equipment is designed and manufactured with energy efficiency in mind. From using less power, to increasing operating performance from advanced hydraulic designs, Water TechniX is Performance Pool Equipment.



Plumbing installation diagram with additional valve kit (not included):

Installation Costs, please note these are an indication only, contact your local trades for an accurate quote -

  • Electrician required for the wiring - approx $120 - $250 depending on application
  • Pool Technician or Plumber - approx $120 - $500 depending on application

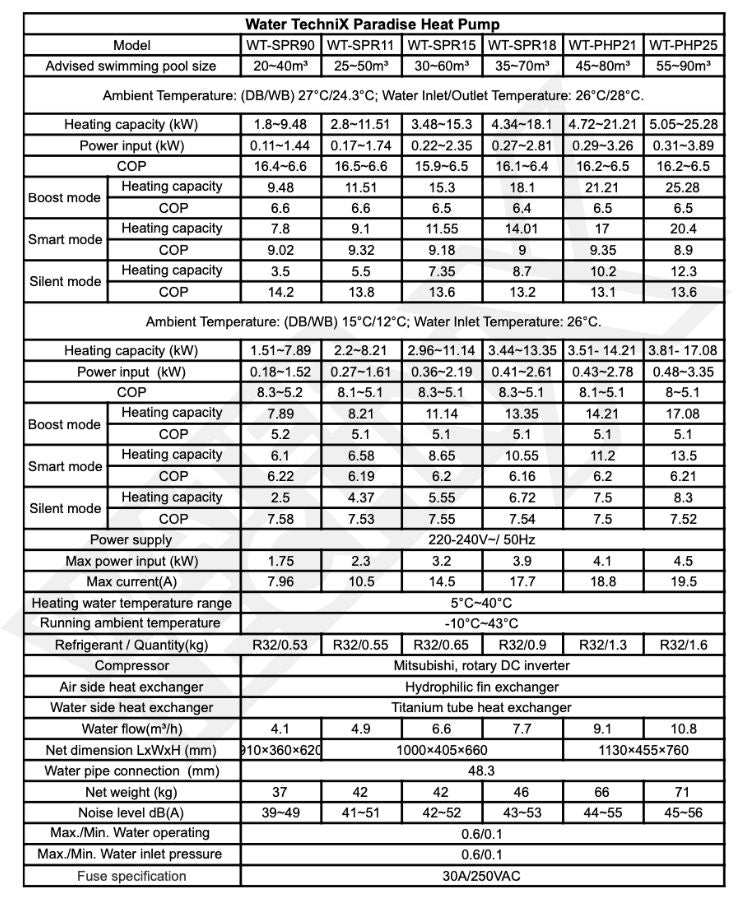

Specifications:

Model

WT-PHP90

WT- PHP11

WT- PHP15

WT- PHP18

Ambient Temperature: (DB/WB) 27°C/24.3°C; Water Inlet/Outlet Temperature: 26°C/28°C.

Heating capacity (kW)

1.8~9.48

2.8~11.51

3.48~15.3

4.34~18.1

Power input (kW)

0.11~1.44

0.17~1.74

0.22~2.35

0.27~2.81

COP

16.4~6.6

16.5~6.6

15.9~6.5

16.1~6.4

Boost mode

Heating capacity (kW)

9.48

11.51

15.3

18.1

COP

6.6

6.6

6.5

6.4

Smart mode

Heating capacity (kW)

7.8

9.1

11.55

14.01

COP

9.02

9.32

9.18

9

Silent mode

Heating capacity (kW)

3.5

5.5

7.35

8.7

COP

14.2

13.8

13.6

13.2

Ambient Temperature: (DB/WB) 15°C/12°C; Water Inlet Temperature: 26°C.

Heating capacity (kW)

1.51~7.89

2.2~8.21

2.96~11.14

3.44~13.35

Power input  (kW)

0.18~1.52

0.27~1.61

0.36~2.19

0.41~2.61

COP

8.3~5.2

8.1~5.1

8.3~5.1

8.3~5.1

Boost mode

Heating capacity (kW)

7.89

8.21

11.14

13.35

COP

5.2

5.1

5.1

5.1

Smart mode

Heating capacity (kW)

6.1

6.58

8.65

10.55

COP

6.22

6.19

6.2

6.16

Silent mode

Heating capacity (kW)

2.5

4.37

5.55

6.72

COP

7.58

7.53

7.55

7.54

Power supply

220-240V~/ 50Hz

Max power input (kW)

1.75

2.3

3.2

3.9

Max current(A)

7.96

10.5

14.5

17.7

Heating water temperature range

5°C~40°C

Running ambient temperature range

-10°C43°C

Advised swimming pool size

20m³~40m³

25m³~50m³

30m³~60m³

35m³~70m³

Refrigerant

R32

Compressor

MITSUBISHI ELECTRIC ( DC inverter)

Air side heat exchanger

Hydrophilic fin exchanger

Water side heat exchanger

Titanium tube heat exchanger

Water flow(m³/h)

4.1

4.9

6.6

7.7

Net dimension LxWxH (mm)

910×360×620

1000×405×660

Water pipe connection  (mm)

48.3

Net weight (kg)

37

42

46

46

Noise level dB(A)

3949

4151

4252

4353

Max./Min. Water operating pressure (MPa)

0.6/0.1

Max./Min. Water inlet pressure (MPa)

0.6/0.1

Fuse specification

65TS/25A/250VAC

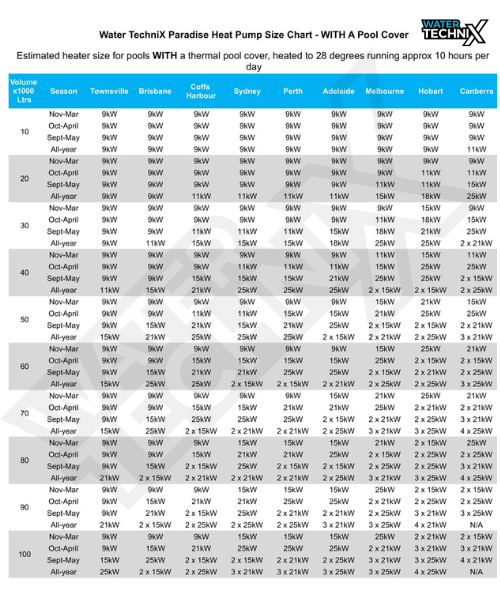

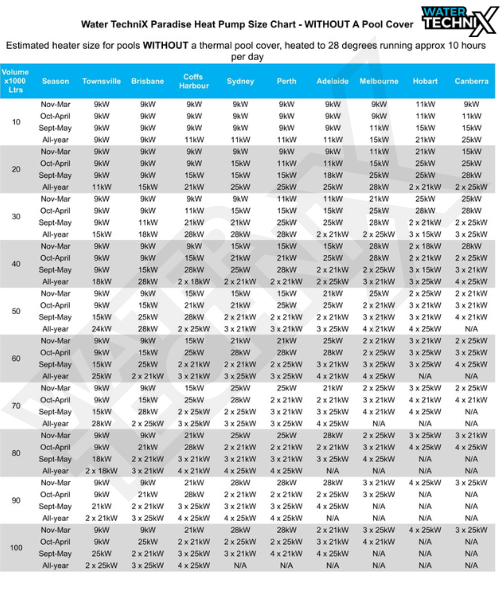

Heat Pump Size Chart:
