Quick and Easy Heat Pump Installation Guide

Written By Timothy Te

31st August 2021

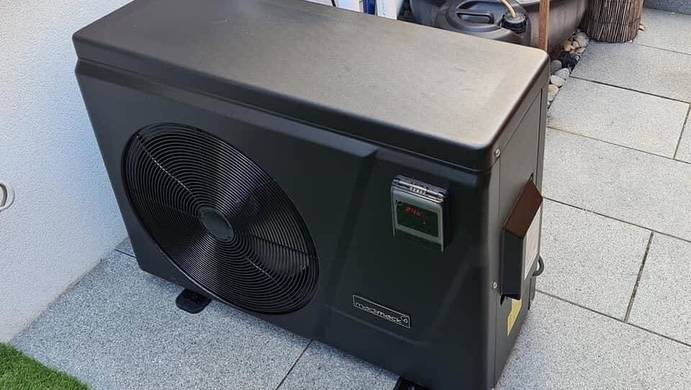

Planning to get a new Madimack Heat pump to extend your pool season or to get a head start on the summer? Not sure if you can install the heat pump on your own? Well. depending on your level of DIY-comfort, installing a pool heat pump can be quite a painless experience as we will explain below.

Pre-Installation Notes

Before even taking the Madimack heat pump from its box, (or even before ordering!) here are some things that you have to make sure to have in place. Once everything has checked out, installing the heat pump is as simple as taking it out of the box and hooking it up to the electrical and water inlets/outlets.

Make sure you have enough power to run the heat pump

At the very least, you should have a dedicated 20A power circuit. This is more than enough for most residential-sized Madimack heat pumps that you can purchase on Mr Pool Man’s online pool supply store. For the Summer, Elite, and Eclipse model, a dedicated 20A power circuit is more than adequate so there’s nothing to worry about. For the Elite Max or other commercial models, you may need a 3-phase connection which may need a licensed electrician to set-up and install.

Make sure that the installation area has adequate ventilation

One of the reasons why Madimack pool heat pumps come in different shapes and designs like the Eclipse (top discharge) or the Summer Eco (front discharge), and the Elite (reverse discharge) is that you can pick the right model to fit your space requirements! To determine if you have enough space, simply plot out the actual dimensions of the heat pump and add the required ventilation spaces to them.

Sold out
  • Summer Eco actual dimensions (L x W x H) 990 x 420 x 757 (this is for the largest Summer Eco model, better to have extra space than to be short of space). Required ventilation space:
    • Rear - 300mm
    • Sides - 700mm per side
    • Front - 500mm

Sold out
  • Elite Heat pump actual dimensions (L x W x H) 1060 x 404 x 958 (this is for the largest Elite model, better to have extra space than to be short of space). Required ventilation space:
    • Rear - 500mm
    • Sides - 500mm per side
    • Front - 500mm

Sold out
  • Eclipse Heat pump actual dimensions (L x W x H) 689 x 780 x 756 (this is for the largest Eclipse model, better to have extra space than to be short of space). Required ventilation space:
    • Rear - 500mm
    • Sides - 500mm per side
    • Front - 500mm
    • TOP - 1000 mm

* Due to cuboid design and top exhaust, the Madimack Eclipse heat pump requires less space all around but it’s the only one requiring a lot of space to be available on the top of the unit.

The space required for installation are actual hard requirements and not negotiable. Having less space will cause poor performance when airflow from the pump’s inlet is less than optimal.

Preparing the installation surface

Make sure that the surface where the Madimack pool pump is exactly level. It is recommended to have a cement surface for installation to ensure that the heat pump remains perfectly level while installed. Heat pumps produce a significant amount of vibration so having a stable surface is required.

Actual Installation of the Madimack heat pump

Once the surface area is prepped and everything is marked down for installation then it’s time to attach your heat pump to your pool’s filtration system. While installation may vary from pool system to pool system, the general idea is the same. Check out the diagram below for a quick look.

By-pass valve - this is important for those times where you don’t need to use the heat pump, especially during summer where the sun is more than enough to heat up your pool! The bypass valve also is used during heavy chemical treatments or when you’re dealing with an algae situation.

Salt Cell / Other Chlorinators - This should always be the LAST piece of equipment in your system.

Mounting the heat pump to the surface - The frame must be fixed by bolts to the concrete foundation (or brackets if wall mounted). The heat pump is a very heavy piece of equipment so it should be secured properly to avoid any accident.

Inlet and Outlet connections - These water connections MUST be installed with rigid pipes! While soft flexible pipes sound easy and convenient to use, they are not recommended and it can cause permanent damage to your unit which will void your warranty.

Drainage nozzles - Much like any other condenser-based appliance, the Madimack Pool heat pumps create condensation and are discharged from the discharge ports. Ensure that the drainage nozzle is connected to a pipe for proper drainage to prevent water from pooling at the bottom of your unit.

Completing the installation

Once everything is all hooked up, allow your pump to run for a few minutes to allow water to fully enter all of the pipes and checking for any leaks before powering on the unit. Enjoy your new Madimack pool heat pump!

Interested in learning more about how heat pumps work? Check out our in-depth article here.

Why go for a heat pump versus other traditional pool heaters? We have a detailed comparison of the best pool heaters that you can check out here.

Ready to get a pool heat pump? Be sure to get the right sized heat pump for your pool with this pool heat pump size guide here.

Do you have any questions about this topic or the featured products? No worries, we're here to help! Drop us a question down below and we'll get back to you ASAP.

Happy swimming :)
